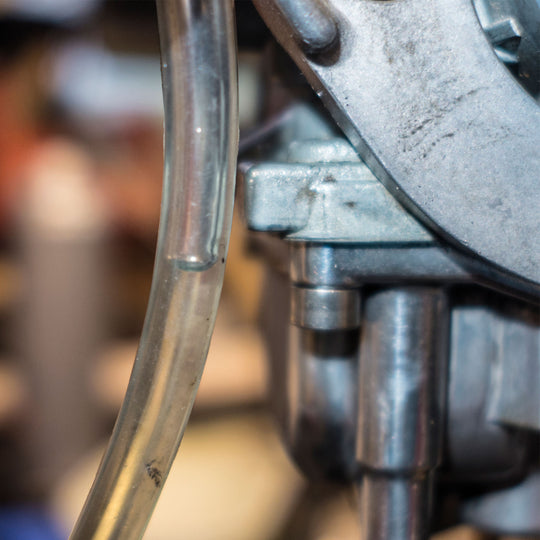

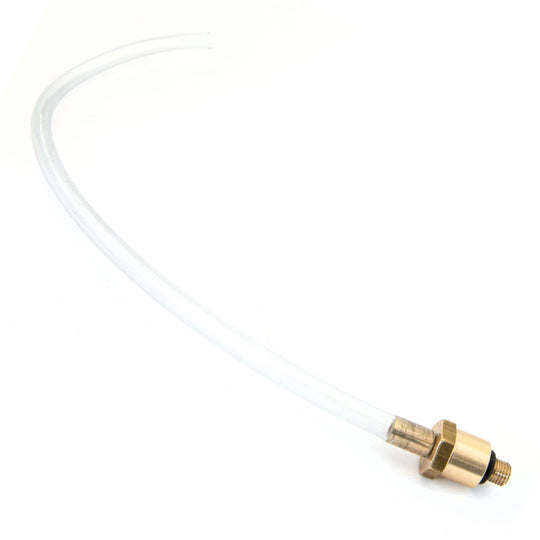

Classic Kawasaki Carburettor Float Height Tool

Classic Kawasaki Carburettor Float Height Tool

This tool is screwed into the bottom of the float bowl on Mikuni VM22/24/26/28 through the drain plug hole. with the petrol tap switch on and the pipe next to the carb the actual level of the fuel can be seen in the float, which is critical to good running.

Many Suzuki GS models used these carbs so the tool will be good for them as well.

We now know, thanks to a helpful customer, that this tool is also suitable for Mikuni BS38s as used on Z750 twins - Thanks Colin :)

Price: £16.66 (Excluding VAT at 20%)

Quantity:

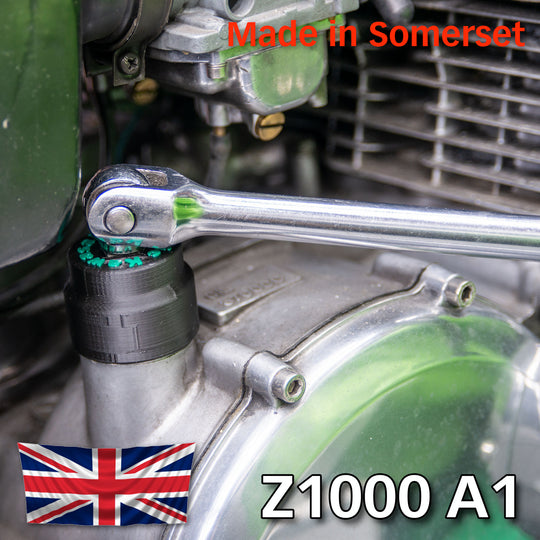

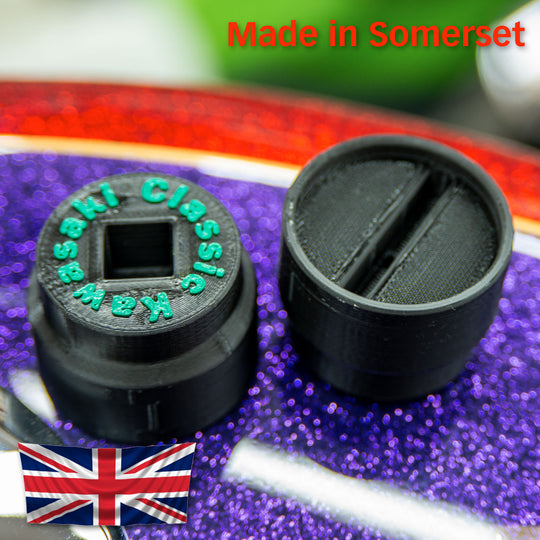

Classic Kawasaki Oil Filler Tool

Classic Kawasaki Oil Filler Tool

How many times have you come to undo the oil filler on your Classic Kawasaki and it's just too tight to undo with your bare fingers? I have a fleet of classic Kawasakis and I have, many times and the aluminum alloy cap is very vulnerable to damage. So, when we bought our 3D printer, the first tool to be designed was a plastic tool to undo these fillers, without risking damage. I tend to polish mine which makes them even more vulnerable to marking.

We have tested this tool on many big classic Kawasakis, Z650, Z900, Z1000 and even the beast of a Z1300. We have tried it on a ZRX1200R and a GPZ750R (Japanese version of the 900R) and whilst it's not a perfect fit them having a slightly fatter hand grip part, we found it still worked in real terms. It may well fit other bikes, but we can only test it on what we have here.

This tool is made from Polylactide (PLA) and is a BioPlastic made from renewable resources. It is even compostible when it is end of life.

Best of all this product is made in Somerset by bikers for bikers!

Price: £8.32 (Excluding VAT at 20%)

Quantity:

Genuine Kawasaki Z1, Z900 & Z1000 Valve Shim Tool

Genuine Kawasaki Z1, Z900 & Z1000 Valve Shim Tool

This is the genuine Kawasaki special tool, made in Japan, that enables you to replace valve shims without having to remove the camshafts. Ensure that you do read the Kawasaki sorkshop manual before using.

There are plenty Zed manuals to download. The Z1 Owners Club have links to downloadable files for club members on their forum.

Please note the tool in the photo demonstrating use is actually a pattern copy from our own workshop which has been out of production for many years, but is essentially identical to the genuine ones, which have always been difficult to source.

Price: £50.42 (Excluding VAT at 20%)

Quantity:

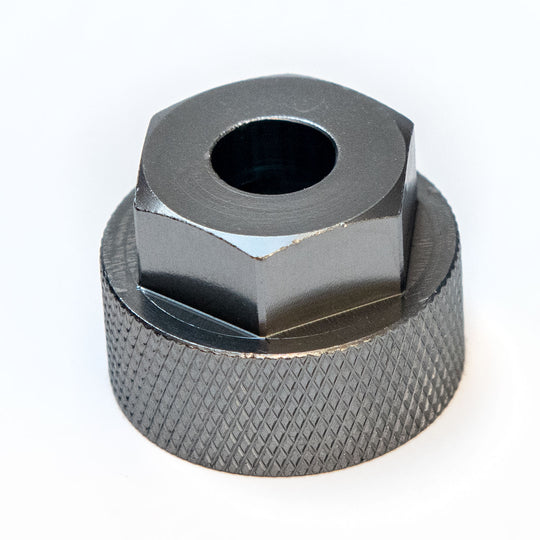

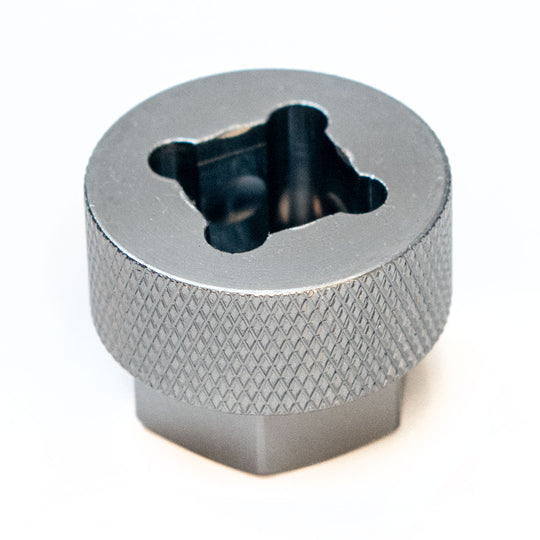

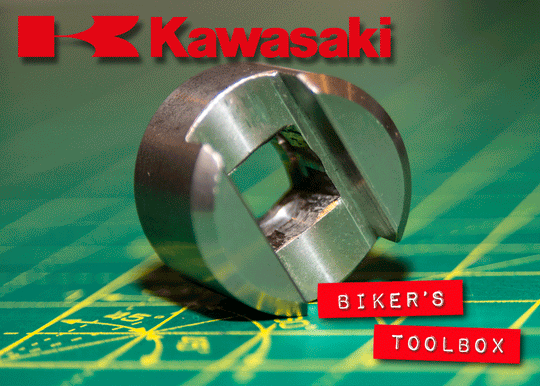

Classic Kawasaki Fork Damper Tool

Classic Kawasaki Fork Damper Tool

This tool is for the damper rods found on a great number of classic seventies Kawasaki motorcycles. It is very similar to the original factory tool 57001-176 (which replaced 57001-142) which has not been available for quite some years. It was used on the earlier Z1 Series bikes and quite of few of the H1s, H2s and other triples.

The tool fits on a 3/8" drive extension bar.

We have had this tool specially made for us in Sheffield in stainless steel for longevity.

Price: £21.66 (Excluding VAT at 20%)

Quantity:

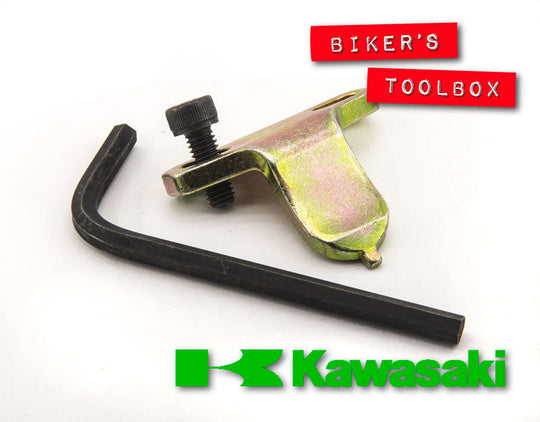

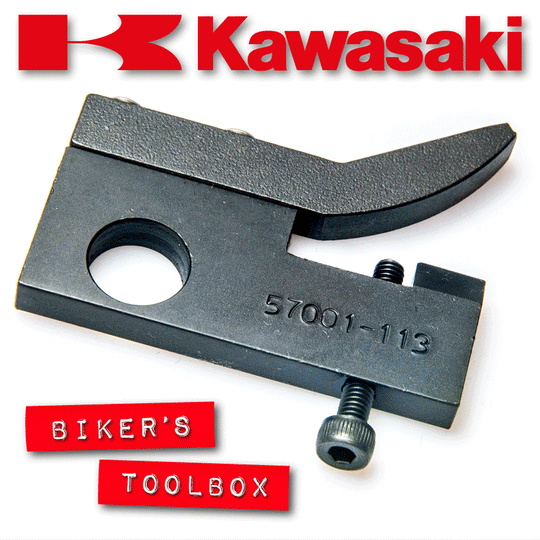

Classic Kawasaki Valve Shim Changing Tool

Classic Kawasaki Valve Shim Changing Tool

This tool is used to hold the bucket down on classic Kawasaki Z1 based engines whilst the shims are changed. Using a spanner or socket on the end of the crankshaft, you turn the crank until the lobe of cam, for the valve you are working on, compresses the spring pushing the bucket down. You then insert the tool so that the little spiggot just holds the edge of the bucket, being secured by the supplied 6mm cap screw inserted in one of the threaded holes used to hold down the cam cover ordinarily. Once the tool is in place, the cam can be backed off by turning the crank the other way. Now the shim can easily be removed. The easiest method is the use a pair of

Price: £16.09 (Excluding VAT at 20%)

Quantity:

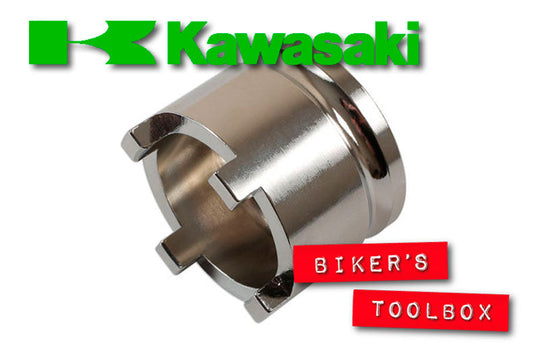

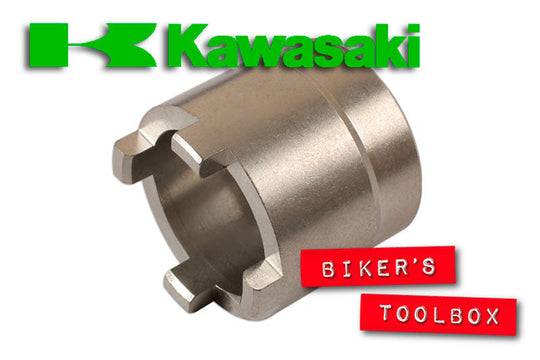

Castle Nut Driver for Kawasaki

Castle Nut Driver for Kawasaki

Swinging arm tool for various Kawasaki road bikes including:
ZX6R (600cc) 2005-2010, ZX6RR 2005, ZX6R (636cc) 2005-2006, ZX10R 2004-2010, Z1000 - 2010, GTR1400 2008-2010 & ZZR1400 2006-2010. It may fit other models.

Made from medium carbon steel, heat treated and chrome plated

Dimensions: External diameter 43mm, Internal diameter 34mm and 4off lugs 7mm x 5.5mm

Price: £24.16 (Excluding VAT at 20%)

Quantity:

Castle Nut Driver for Kawasakis

Castle Nut Driver for Kawasakis

Swinging arm tool for various Kawasaki road bikes including:
ZX6RR/6R 2003-2004, Z750 2004-2010, Z750S 2005-2006, Z10002007-2008 & ZZR1200 2002-2003. It may fit other models.

Made from medium carbon steel, heat treated and chrome plated

Dimensions: External diameter 37mm, Internal diameter 28.5mm and 4off lugs 6mm x 5mm

Price: £17.19 (Excluding VAT at 20%)

Quantity:

Castle Nut Driver for Kawasaki ZX12R

Castle Nut Driver for Kawasaki ZX12R

Swinging arm tool for Kawasaki ZX12R 2001-2005 and others

Made from medium carbon steel, heat treated and chrome plated

External diameter 50mm, Internal diameter 41mm, 4 lugs 4mm x 5mm

Price: £17.40 (Excluding VAT at 20%)

Quantity:

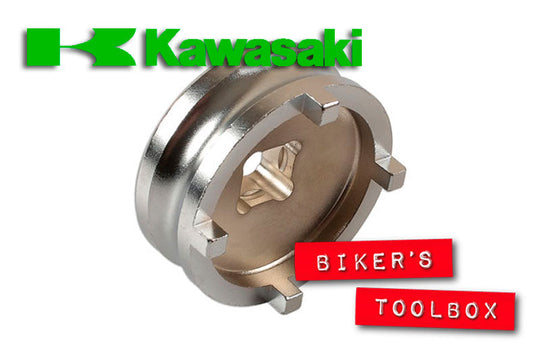

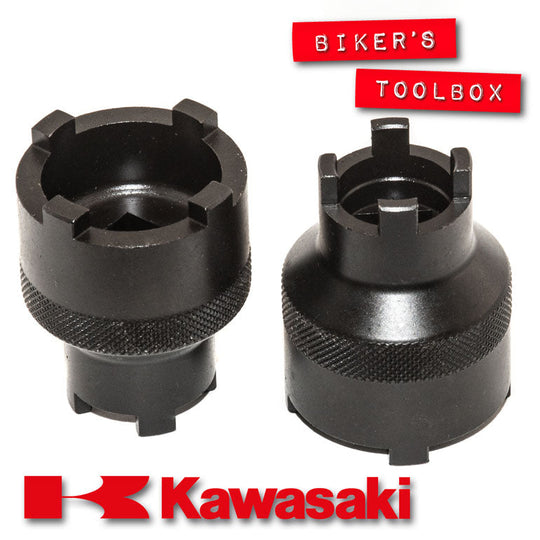

Kawasaki Double Ended Castle Nut Driver

Kawasaki Double Ended Castle Nut Driver

• Outside diameter 1: 39MM
• Inner diameter 1: 30.5MM
• Pegs: 7MM

• Outer diameter 2: 26mm
• Inner diameter 2: 19.9MM
• Pegs: 6.5MM
• Drive: 1/2 " Drive

Suitable for Kawasaki bikes:
GTR1400 2007 - 2013,
Z750L / Z750M 2007 - 2010,
Z1000 2003 - 2013,
ZX10R 1000 2007 - 2014,
ZX6R 1998 - 2013,
ZZR 600E 5005 - 2006,
ZZR1200C 2002,
ZZR1400 2012 - 2013

Price: £34.48 (Excluding VAT at 20%)

Quantity:

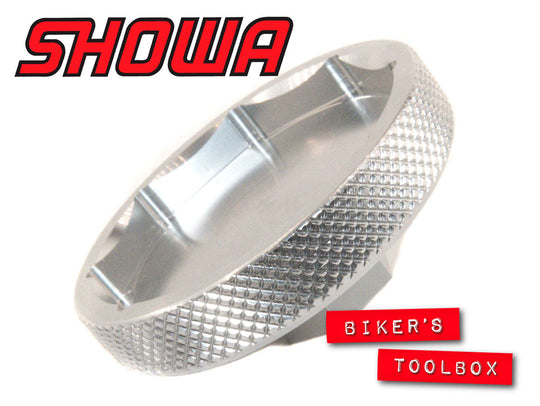

Showa 45mm Fork Cap Tool

Showa 45mm Fork Cap Tool

Anodiied aluminium fork cap tool for 45mm Showa 8 sided fork caps. Use with 17mm socket or spanner.

Fits Showa BPF fork 43

Price: £13.48 (Excluding VAT at 20%)

Quantity:

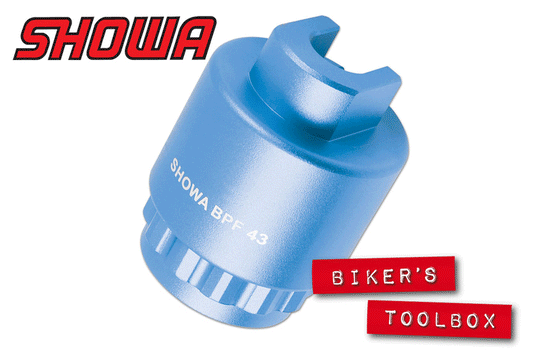

Showa Big Piston Forks 43mm Fork Spring Support Remover

Showa Big Piston Forks 43mm Fork Spring Support Remover

The 43mm BPF Forks (Big Piston Forks) are used on serveral makes of motorcycles including: Ducati, Honda, Kawasaki and Suzuki.

Equivalent to: Ducati OEM 88713.4485; Honda OEM 070MB-MGPA100; Kawasaki OEM 57001-1758 and Suzuki OEM 09940-84710-LPT

Used to remove the internal rod guide.

Use with Showa 45mm Fork Cap Tool

12pt profile for positive drive x 22mm

Price: £26.71 (Excluding VAT at 20%)

Quantity:

Fork Wrench for Big Piston

Fork Wrench for Big Piston

End wrench for Big Piston Forks.

For installation of rod guide housing in the inner steerer in big piston forks. Hexs: 32.8mm and 34.7mm
The tool has two sizes that are needed for Kawasaki ZX10R (2011 - 2016), Suzuki GSX-R 600 (2011- 2015), GSX-R 600 UF (2011 - 2015), GSX-R 1000 (2012 - 2014), GSX-R 1000 Z (2013 -2014), GSX-R 1000 UF (2012 - 2014) and GSX-R 1000 ZUF (2013 - 2014). It may fit other bikes using the same forks.

Price: £111.76 (Excluding VAT at 20%)

Quantity:

Fork Damper Rod Holding Tool Small

Fork Damper Rod Holding Tool Small

This tool is used to hold the damper rod still in forks when dismantling, so that the bottom bolt can be undone. Once the bottom bolt, usually a cap screw, is released the fork stanchions can be remoced from the bottom slider. This tools is commonly used on various KX, Z and KZ Kawasaki models.

The back takes a 3/8" drive socket bar.

The cone is from 10.5 - 17.8mm

Before ordering this tool please compare the above measurements with your forks

Price: £7.81 (Excluding VAT at 20%)

Quantity:

Fork Damper Rod Holding Tool

Fork Damper Rod Holding Tool

This tool is used to hold the damper rod still in forks when dismantling, so that the bottom bolt can be undone. Once the bottom bolt, usually a cap screw, is released the fork stanchions can be remoced from the bottom slider. This tools is commonly used on various KX, Z and KZ Kawasaki models.

The back takes a 1/2" drive socket bar.

The cone is from 15 - 26mm. The round boss is 36mm in diameter.

Before ordering this tool please compare the above measurements with your forks

eg: This is not suitable for the 70's Z1/Z650 series bikes whose forks are 36mm outside diameter

Price: £12.17 (Excluding VAT at 20%)

Quantity:
