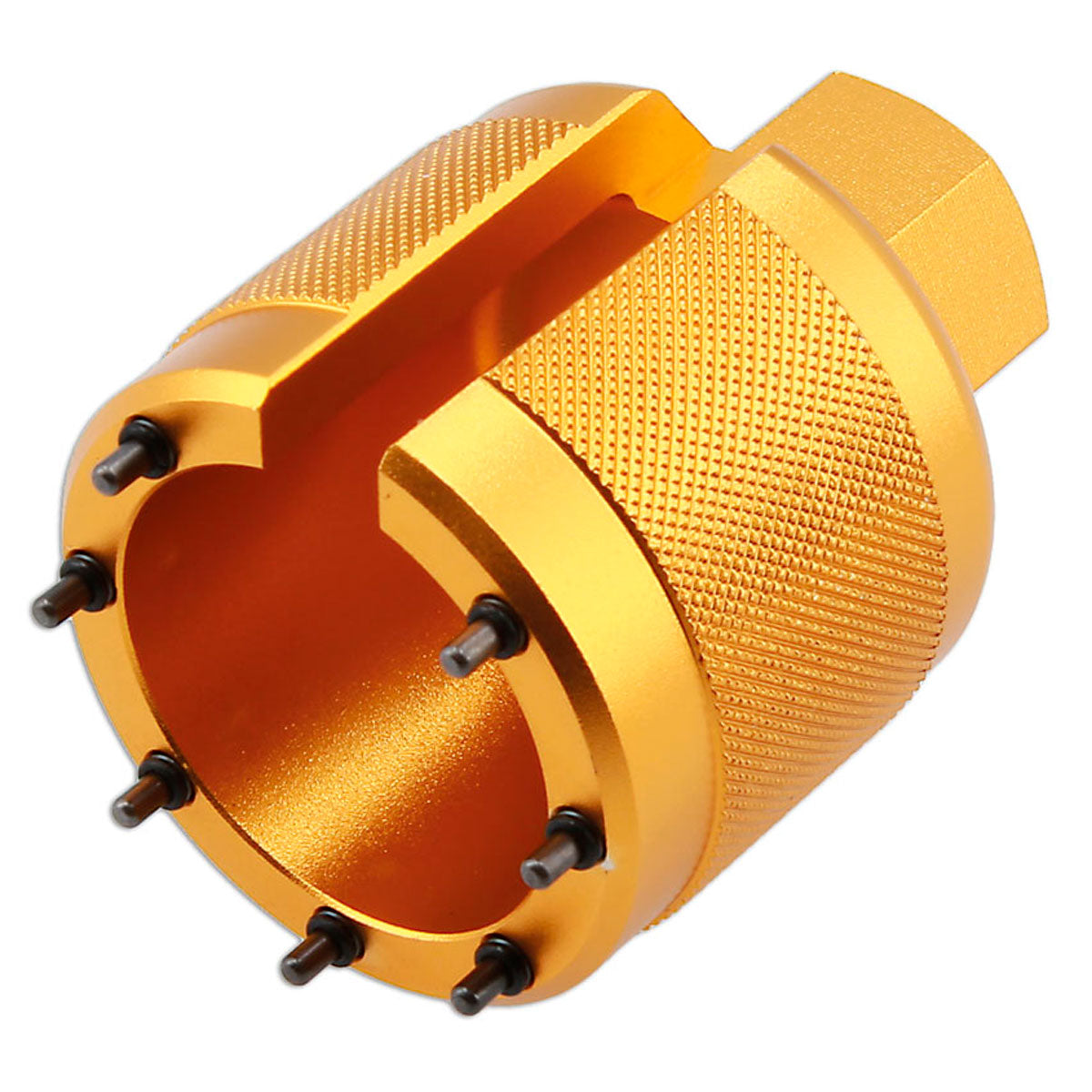

Specially designed to fit the fork caps found on the Öhlins NPX 43 forks fitted with Smart Electronic Control (S-EC). The socket has seven pin configuration with a 10mm wiring slot to allow the socket to fit snugly over the fork control wiring harness. The fork cap has 8 holes however only 7 can be used to allow for the harness slot.
- Applications include: Honda CBR 1000RR-R SP (from 2022), Triumph Speed Triple 1200 RR (from 2022).

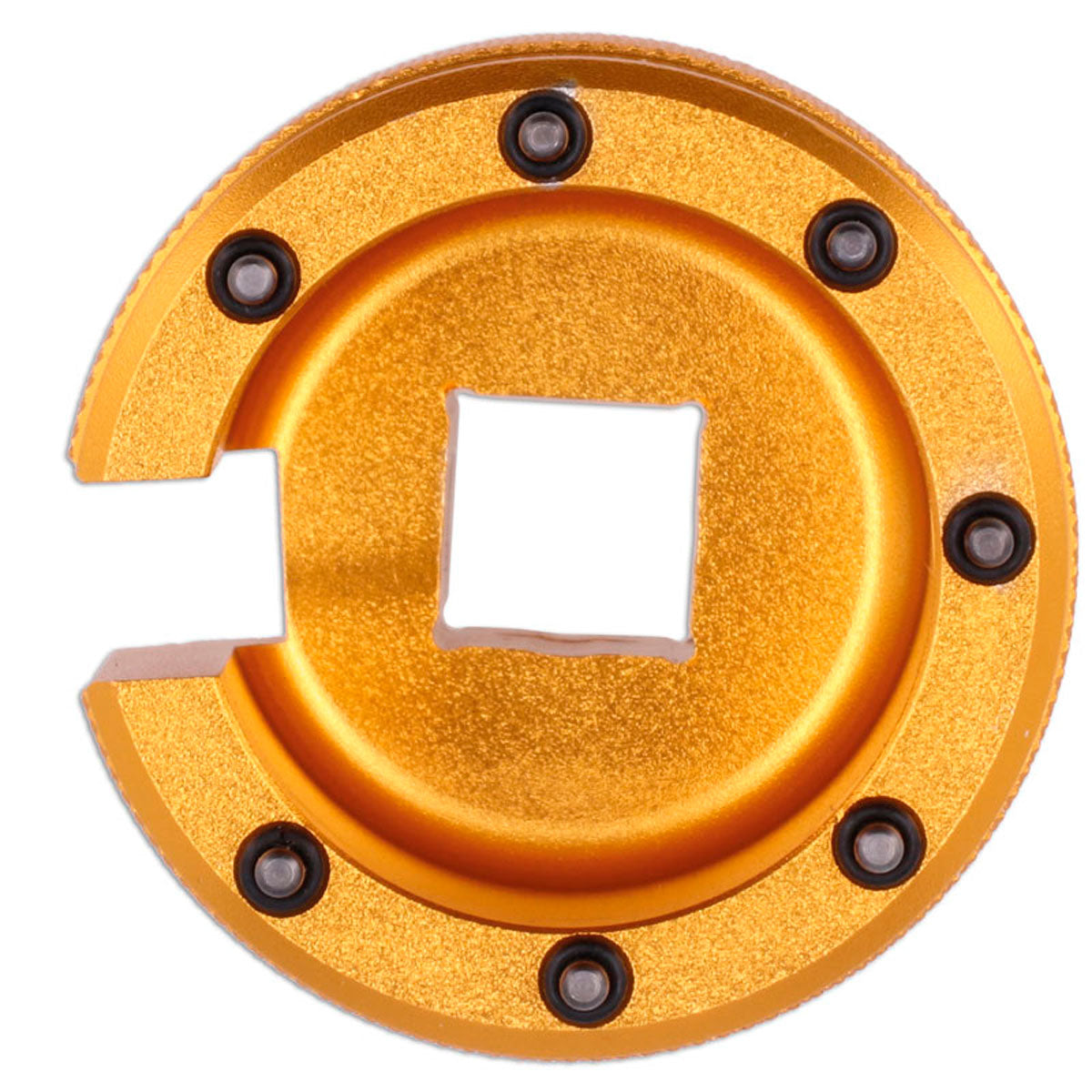

- 7 x 2.3mm pins, 42mm PCD, 10mm sensor wiring slot.
- Aluminium body with steel pins protected by rubber base rings.
- Use with 1/2"D socketry or 24mm ring spanner. Not suitable for impact use.
- NOTE: Always loosen the top yoke (triple trees) fork tube clamps before attempting to loosen the cap.
Biker's Toolbox Limited
Fork Cap Socket - Öhlins NPX-43 Honda/Triumph
All UK Prices Inc VAT
- Regular price
- £45.95
Specially designed to fit the fork caps found on the Öhlins NPX 43 forks fitted with Smart Electronic Control (S-EC). The socket has seven pin configuration with a 10mm wiring slot to allow the socket to fit snugly over the fork control wiring harness. The fork cap has 8 holes however only 7 can be used to allow for the harness slot.
- Applications include: Honda CBR 1000RR-R SP (from 2022), Triumph Speed Triple 1200 RR (from 2022).
- 7 x 2.3mm pins, 42mm PCD, 10mm sensor wiring slot.
- Aluminium body with steel pins protected by rubber base rings.
- Use with 1/2"D socketry or 24mm ring spanner. Not suitable for impact use.
- NOTE: Always loosen the top yoke (triple trees) fork tube clamps before attempting to loosen the cap.
- Regular price
- £45.95
