Ralph wanted to use one of these electronic relays on his '76 Z900 special, but there was not a suitable bracket on the bike. He then designed one and made it on the 3D printer in strong and durable PET G plastic.
It then occurred to us that maybe Ralph isn't the only person who could use such a bracket, so we did a short production run.

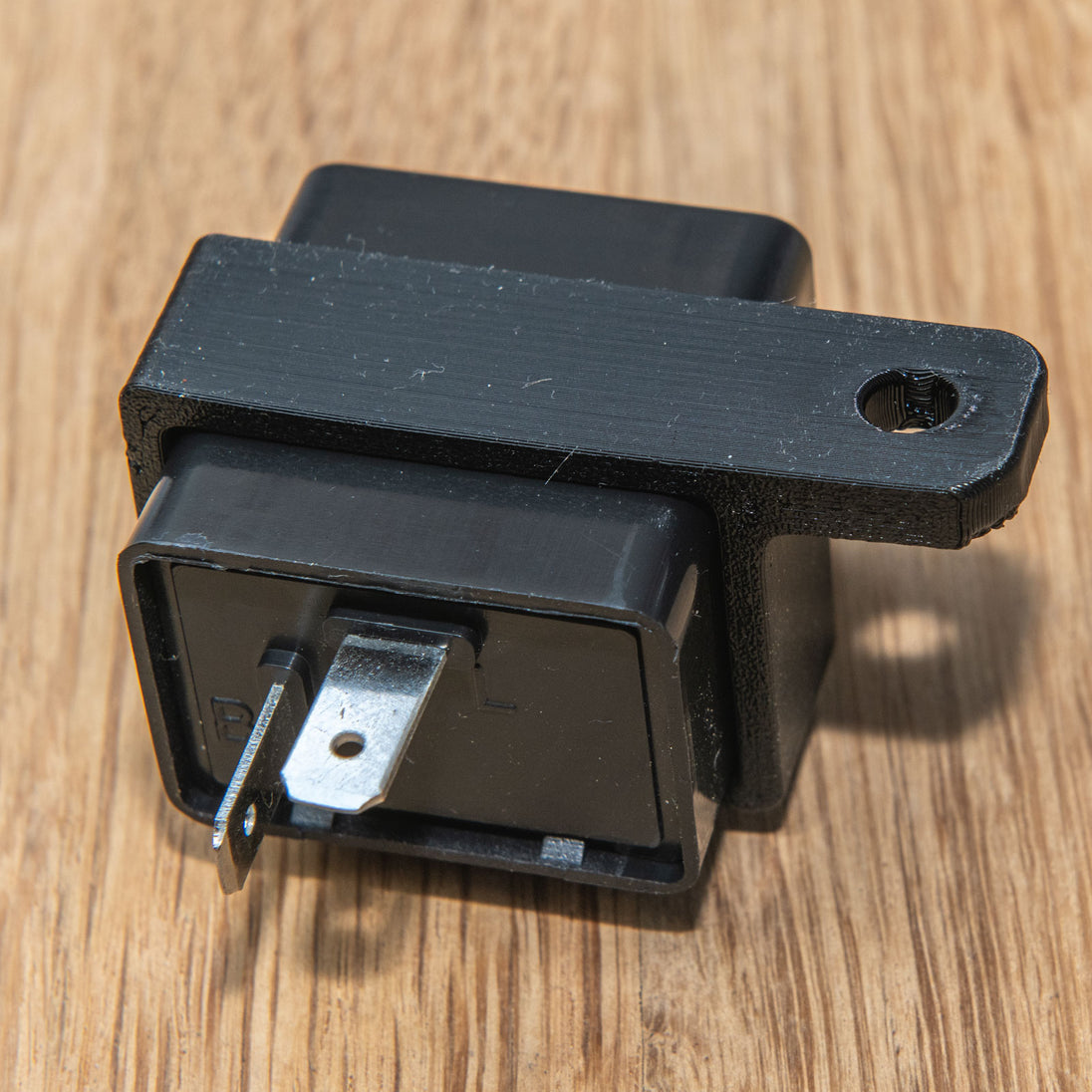

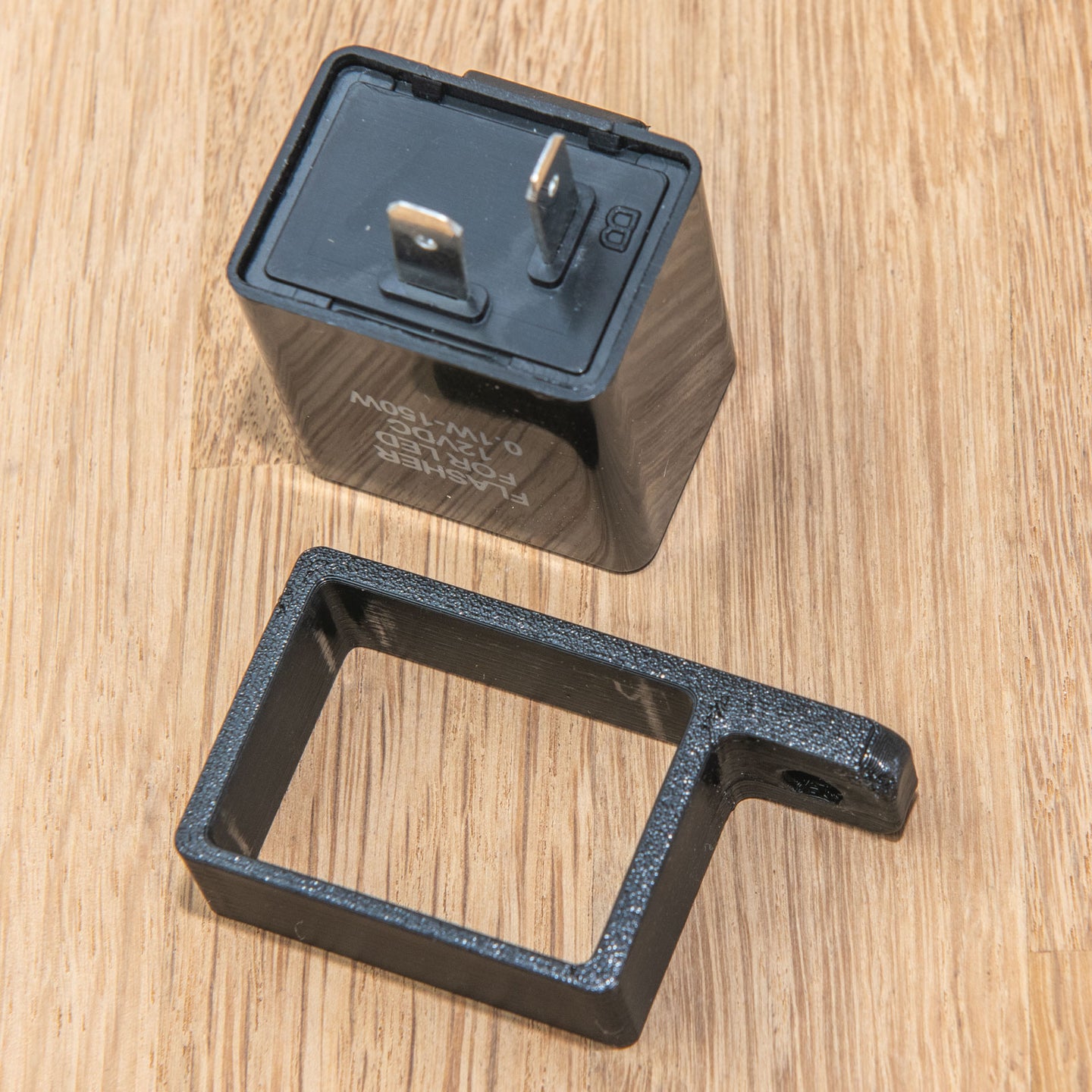

The relay is necessarily a tight fit in the bracket so isn't the easiest to fit, but were it a loose fit there would be the danger of it falling off. If it is tricky to get in you could make a light chamfer on the end of the relay case with a file or emery board.

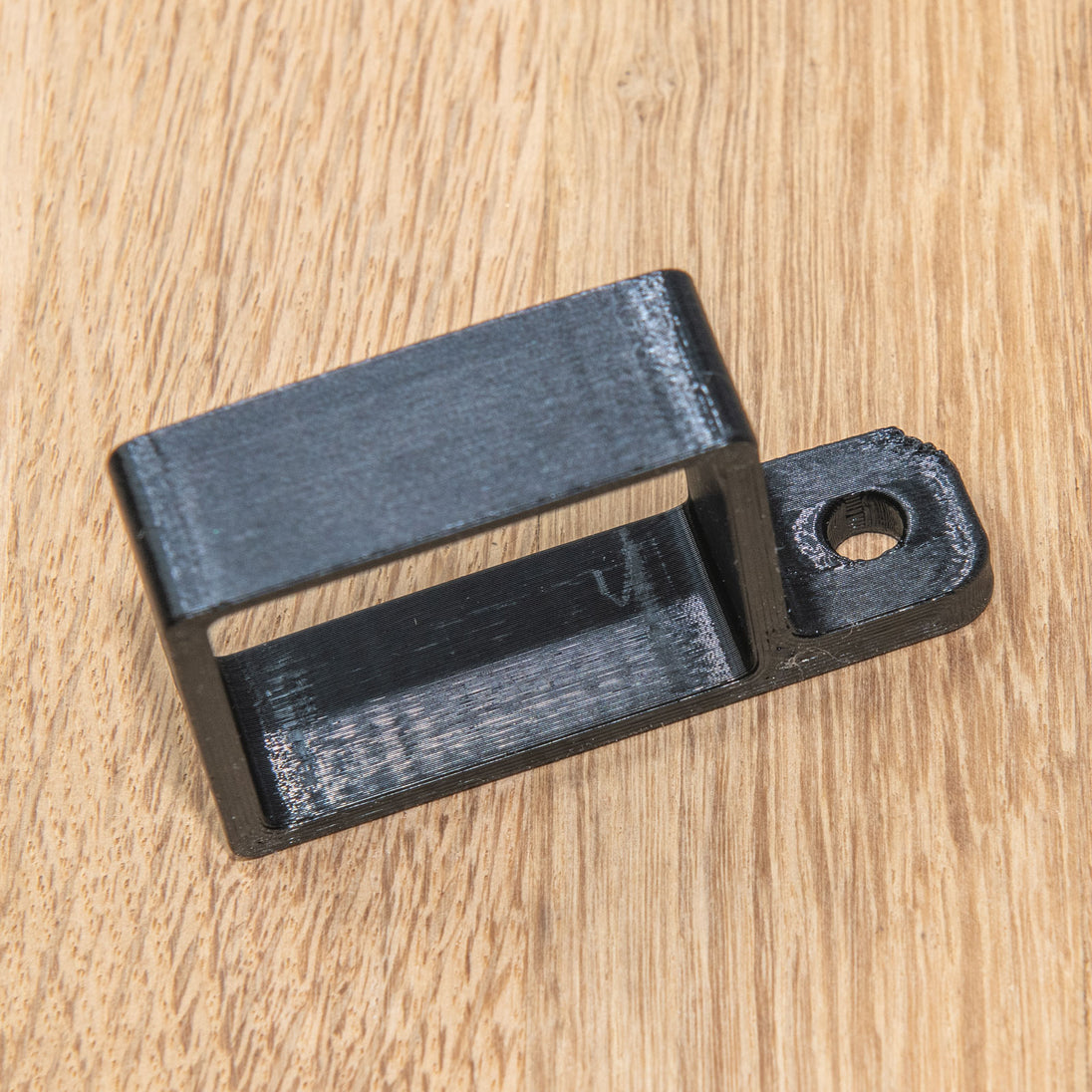

The mounting hole is 5mm. If you need a 6mm hole, as Ralph did, just open it up with a 6mm drill. If we made it a 6mm hole then using it with 5mm screws/bolts would not be ideal.
If you are buying a relay and this bracket and want us to fit the relay just drop us an email. If you want an M6 hole we can also open that up before posting.
Biker's Toolbox Limited
Mounting bracket for Electronic Indicator Relay
All UK Prices Inc VAT
- Regular price
- £1.99
Ralph wanted to use one of these electronic relays on his '76 Z900 special, but there was not a suitable bracket on the bike. He then designed one and made it on the 3D printer in strong and durable PET G plastic.
It then occurred to us that maybe Ralph isn't the only person who could use such a bracket, so we did a short production run.
The relay is necessarily a tight fit in the bracket so isn't the easiest to fit, but were it a loose fit there would be the danger of it falling off. If it is tricky to get in you could make a light chamfer on the end of the relay case with a file or emery board.
The mounting hole is 5mm. If you need a 6mm hole, as Ralph did, just open it up with a 6mm drill. If we made it a 6mm hole then using it with 5mm screws/bolts would not be ideal.
If you are buying a relay and this bracket and want us to fit the relay just drop us an email. If you want an M6 hole we can also open that up before posting.
- Regular price
- £1.99
